DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell

DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell
DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell

Large Image :  DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell

Product Details:
Place of Origin: CHINA
Brand Name: misung steel
Model Number: P20/1.2311/3CR2MO
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: usd 0.8-1.5/kg
Packaging Details: According to The Demand of The Customer Inquire, Standard Seaworthy Package
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 tons per month
Contact Now

DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell

Description
Product Name: P20 Steel Plate 810mm Wide For Manufactory Mould Base Of Tv Front Shell Technique: Hot Rolled, Forged, EAF+LF+VD+Hot Rolled/Forged, Forged/Hot Rolled/Cold Drawn, Hot Rolled/forged/cold Draw
Surface Treatment: Black Or Machined, Black Bright Mirror(mill Polishing HL Etc), Black Surface Or Mi Standard: AISI, DIN, ASTM, GB, JIS
Application: Mould Base Of TV Front Shell, Telephone Set, Drinking Machine, Vacuum Cleaner Shape: Plate, Sheet, Steel Plate/flat Bar/round Bar, Plate/sheet/ Flat Bar, Ba
Delivery Condition: Raw, According To The Demand Of The Customer Inquire, Standard Seaworthy Package
Highlight:

DIN 1.2311 plastic mould steel bar

,

GB plastic mould steel bar

,

JIS carbon steel flat bar

DIN 1.2311 Plastic Mould Steel Bar, Drinking Machine GB JIS Carbon Steel Flat Bar
P20 / 1.2311/ 3CR2MO Plastic Mold Steel Flat Bar
Plastic mold includes thermoplastic mold and thermosetting plastic mold. The steel for plastic mould is required to have certain properties such as strength, hardness, wear resistance, thermal stability and corrosion resistance.
Applications
  • Plastic mould and mould base for TV front shell, telephone set, drinking machine, vacuum cleaner, etc.
  • Thermoplastic injection mold and extrusion mold
  • Thermoplastic blow molding mold
  • Heavy duty mold main parts
  • Cold structural parts
  • Commonly used in manufacturing television cases, washing machines, refrigerator inner shells, buckets, etc.
Specifications
Product Name alloy steel/carbon steel/steel round bar
Length custom-made
Width custom-made
Thickness any size can custom-made
Standard AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Technique Hot rolled/forged/cold draw
Surface Treatment clean/black rough/milled/grinding painting etc.
Thickness tolerance ±0.15mm
MOQ 1 ton to 25 tons and accept sample order
Shipping time 15-20 days after receiving deposit or L/C
Export packing Standard export seaworthy package/wooden box package
Capacity 12000 tons/year
Available Materials
3Cr2Mo 1.2311 1.2312 P20 1.2738 718H P20+Ni 1.2316 1.2083 4Cr13 sus420j2 420 S136 P80H13 1.2344 SKD61 5CrNiMo SKT4 1.2714 Cr12 D3 1.2080 Cr12MoV D2 1.2379 SKD11 9CrWMn O1 1.2510 SKS3 DC53 40Cr 5140 35CrMo 42CrMo 4140 1.7225 C45 C50 1045 1050 S50C S45C T10 T8 M2 1.338 SKH51 CUSTOM-MADE
Chemical Composition
Grade C Si Mn Cr Mo P S
DIN 1.2311 0.35~0.45 0.20~0.40 1.30~1.60 1.80~2.10 0.15~0.25 ≤0.03 ≤0.03
AISI P20 0.28~0.4 0.2~0.8 0.6~1.0 1.4~2.0 0.3~0.55 ≤0.03 ≤0.03

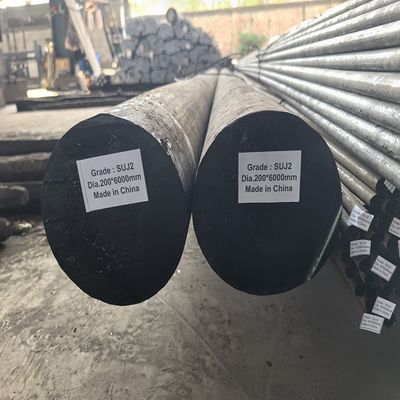

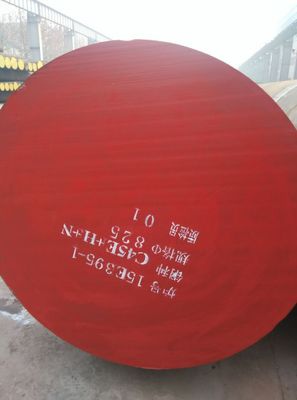

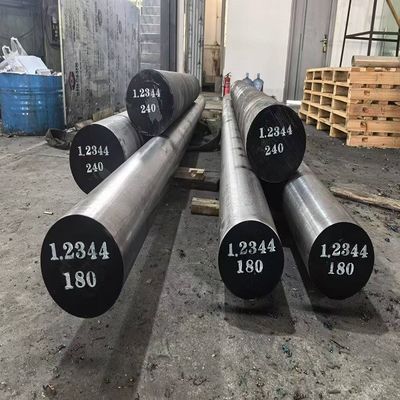

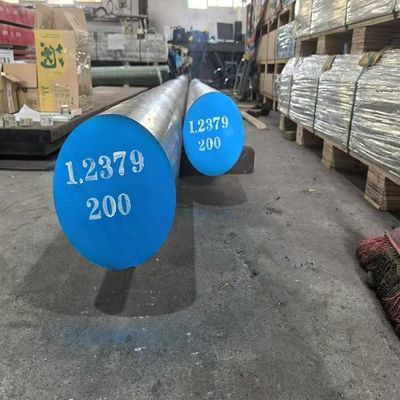

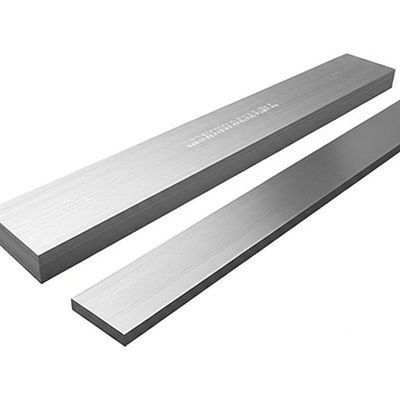

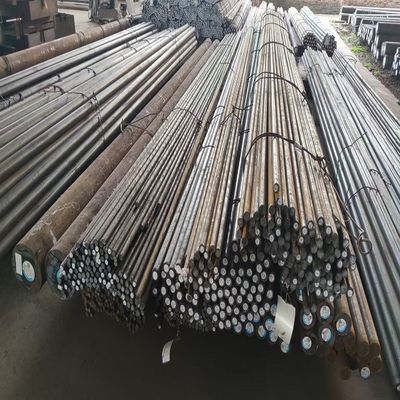

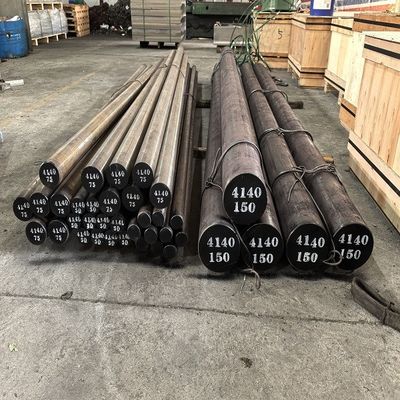

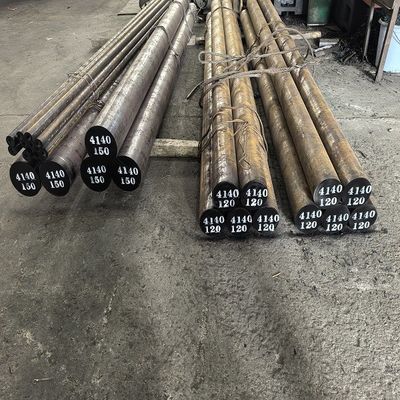

Product Images
DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell 0 DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell 1 DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell 2 DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell 3 DIN 1.2311 Plastic Mold Steel Bar with 35HRC 38HRC 42HRC Hardness for Mould Base and TV Front Shell 4
