PET Preform Mold Materials S136h Mold Tool Steel Plate
Product Details
S136h Mold Tool Steel Plate
,S136h Mold Materials Steel Plate
,Pet Preform Mold Tool Steel
Pet Perform Mold Using Mold Materals S136h Mold Steel Plate

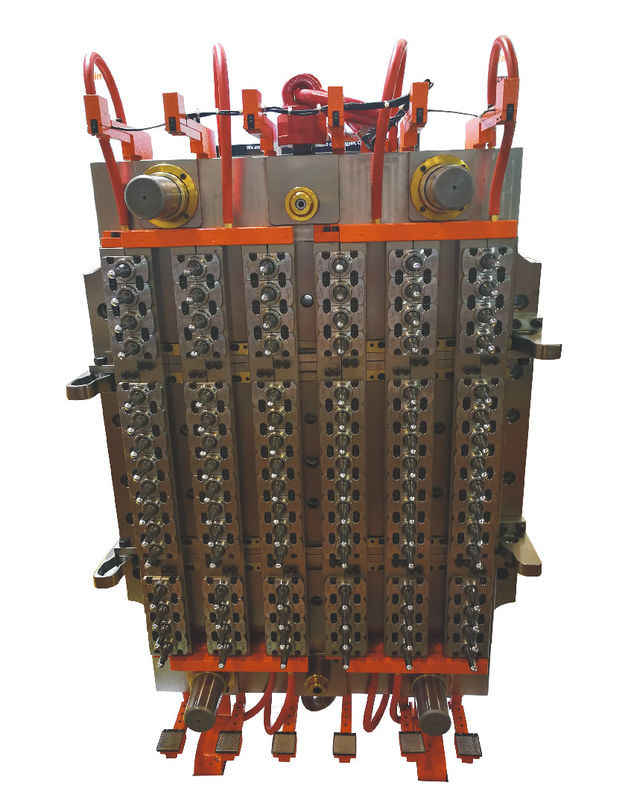

PET Perform Mold Steel
Takford special steel is one of the professional suppliers of S136 Mold Steel, We supply S136 Steel Round bar, Flat bar, Plates. S136 tool Steel China supplier and stockholders.We are the biggest the stockholders for S136 in China. Thickness from 8mm up to 500mm, wide max do 2200mm
Description
S136 Mold Steel material by electroslag melting smelting with good cast optical activity (mirror processing) good wear resistance and toughness at high temperature with good plasticity because of its high chromium content (13.6%) so its corrosion resistance is excellent, pre-add hard corrosion-resistant mirror mold steel S136 is a mirror rust-proof mold steel.
S136 mold steel with excellent corrosion resistance has been widely applied in the mold industry. However, in order to meet the increasing demands of injection products with complex structure and high quality, selective laser melting (SLM) as a novel manufacturing method is chosen due to its rapid fabricating parts with complex geometric shapes. Further, it is essential to enhance their hardness and wear property to prolong the service life of the injection mold.
Chemical Composition of S136 Mold Steel
| C | Si | Mn | Cr | P | S |
| 0.38 | 0.8 | 0.5 | 13.6 | <0.03 | <0.03 |
S136 mold steel specification
| Grade: | S136 / AISI 420 / DIN 1.2083 / GB 4Cr13 | Hardness: | ≤ 229HBS Or 32~36HRC |
| Hot Rolled Technology: | EAF+LF+VD | Hardness(HRC): | 49 47 46 46 47 32 |
| Applications: | High Quality Plastic Mould, Transport Plastic Mould | ||
S136 steel equivalent
Equivalent grades: 4CR13/HPM38/S-STAR/PAK90/2083/420/M300 Die Steel
Heat treatment
1.Annealing
In a protected state, heat up to 780 ℃ and then cool to 650 ℃ in the furnace at 10 ℃ per hour and then cool in the air.
2.Stress elimination
After roughing, must be heated to 650 ℃, both hot 2 hours, slowly cooling to 500 ℃, and then cooling in the air.
3.Hardened
Preheating Temperature: 600-850 ℃
Quenching temperature: 980-1050 ℃
Application
High degree of polishing and high requirements of the internal mold, corrosion-resistant plastic molds, production, medical, food industry, and other products. S136 can be used with all molds, due to their special nature, more suited to the needs of special environments.
-
