PET Mold Base ESR 1.2083 420 S136 4Cr13 Plastic Mold Steel

PET Mold Base ESR 1.2083 420 S136 4Cr13 Plastic Mold Steel
PET Mold Base ESR 1.2083 420 S136 4Cr13 Plastic Mold Steel PET Mold Base ESR 1.2083 420 S136 4Cr13 Plastic Mold Steel PET Mold Base ESR 1.2083 420 S136 4Cr13 Plastic Mold Steel PET Mold Base ESR 1.2083 420 S136 4Cr13 Plastic Mold Steel

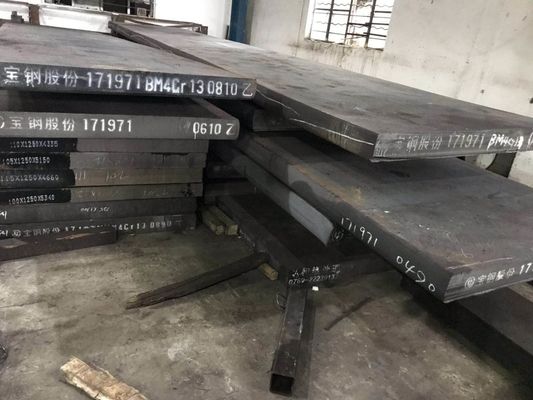

Large Image :  PET Mold Base ESR 1.2083 420 S136 4Cr13 Plastic Mold Steel

Product Details:
Place of Origin: China
Brand Name: takford
Model Number: S136/1.2083/420/SUS420J2/4CR13/40CR14
Payment & Shipping Terms:
Minimum Order Quantity: 1PIECE
Price: 1.5-5 USD PER KG
Packaging Details: WOODEN BOX PACKAGE
Delivery Time: 3-7 WORKING DAYS
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 TONS PER MONTH

PET Mold Base ESR 1.2083 420 S136 4Cr13 Plastic Mold Steel

Description
Technique: ESR Hot Rolled, Forged, EAF+LF+VD+Hot Rolled/Forged, Forged/Hot Rolled/Cold Drawn, Hot Rolled/forged/cold Draw Surface Treatment: Black Or Machined, Black Bright Mirror(mill Polishing HL Etc), Black Surface Or Mi
Length: Customized, Customers' Requirement, 3000-118800mm, As Buyer Requirement Application: Plastic Mold
Standard: AISI, DIN, ASTM, GB, JIS Grade: S136/1.2083/420/SUS420J2/4CR13/40CR14
Type: Steel Plate Material: Plastic Tool Steel, EAF Or ESR, Alloy Tool Steel
Surface: Black Or Polish, Black Surface/machined Surface/bright Surface, Polished, Machined Shape: Plate, Sheet, Steel Plate/flat Bar/round Bar, Plate/sheet/ Flat Bar, Bar
Hardness: 30-35 HRC 35-45 HRC Packing: Raw, According To The Demand Of The Customer Inquire, Standard Seaworthy Package
High Light:

S136 Plastic Mold Steel Plate

,

1.2083 Plastic Mold Steel

,

4Cr13 Plastic Mold Steel

ESR Pre - Hardened Plastic Mold Steel Plate 1.2083 420 S136 4Cr13 for PET mold base



Takford special steel is one of the professional suppliers of 1.2083 Mold Steel, We supply 1.2083 Steel Round bar, Flat bar, Plates. S136 tool Steel China supplier and stockholders.We are the biggest the stockholders for 1.2083 in China. Thickness from 8mm up to 500mm, wide max do  2200mm

Description

 DIN 1.2083 Mold Steel material by electroslag melting smelting with good cast optical activity (mirror processing) good wear resistance and toughness at high temperature with good plasticity because of its high chromium content (13.6%) so its corrosion resistance is excellent, pre-add hard corrosion-resistant mirror mold steel S136 is a mirror rust-proof mold steel.

S136 mold steel with excellent corrosion resistance has been widely applied in the mold industry. However, in order to meet the increasing demands of injection products with complex structure and high quality, selective laser melting (SLM) as a novel manufacturing method is chosen due to its rapid fabricating parts with complex geometric shapes. Further, it is essential to enhance their hardness and wear property to prolong the service life of the injection mold.

Chemical Composition of AISI 420 DIN 1.2083 Mold Steel

C Si Mn Cr P S
0.38 0.8 0.5 13.6 <0.03 <0.03




S136 mold steel specification
Grade: S136 / AISI 420 / DIN 1.2083 / GB 4Cr13 Hardness: ≤ 229HBS Or 32~36HRC
Hot Rolled Technology: EAF+LF+VD Hardness(HRC): 49 47 46 46 47 32
Applications: High Quality Plastic Mould, Transport Plastic Mould

S136 steel equivalent

Equivalent grades: 4CR13/HPM38/S-STAR/PAK90/2083/420/M300 Die Steel


Heat treatment

1.Annealing

In a protected state, heat up to 780 ℃ and then cool to 650 ℃ in the furnace at 10 ℃ per hour and then cool in the air.

2.Stress elimination

After roughing, must be heated to 650 ℃, both hot 2 hours, slowly cooling to 500 ℃, and then cooling in the air.

3.Hardened

Preheating Temperature: 600-850 ℃

Quenching temperature: 980-1050 ℃


Application

High degree of polishing and high requirements of the internal mold, corrosion-resistant plastic molds, production, medical, food industry, and other products. S136 can be used with all molds, due to their special nature, more suited to the needs of special environments.
