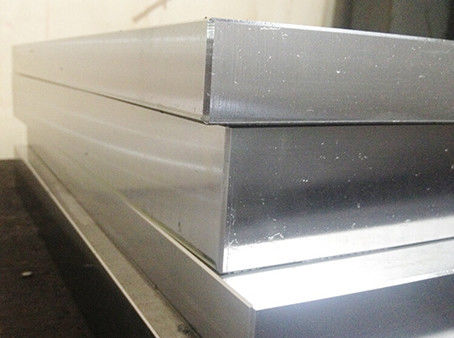

Hot Rolled 32-38HRC 718H Plate Plastic Mould Steel Material

Basic Properties
Place of Origin: CHINA
Brand Name: takford
Model Number: 718H/1.2738/P20+NI/
Trading Properties
Minimum Order Quantity: 1 pc
Price: USD 1.2-2.2 USD/KG
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 TONS PER MONTH
Tags

S136H Mold Tool Steel

1.2085 Plastic Mold Steel

1.2085 Mold Tool Steel
Product Summary
718H Plastic Mold Steel Plate Hardness 32-38HRC, With High Polising 718H Mould Steel Bar 718H is a vacuum-melting chromium-nickel-molybdenum alloy steel that has been hardened and tempered before it leaves the factory. It offers the following advantages: No risk of quench cracking and heat treatment...

Product Details

Highlight:

38HRC 718H Mold Steel Plate

,

32HRC Mould Steel Material

,

718H Mould Steel Material
Technique: Hot Rolled, Forged, EAF+LF+VD+Hot Rolled/Forged, Forged/Hot Rolled/Cold Drawn, Hot Rolled/forged/cold Draw
Surface Treatment: Black Or Machined, Black Bright Mirror(mill Polishing HL Etc), Black Surface Or Mi
Width: 800-1830mm, Customized, 225~2400mm, 600-2300, 600mm - 2000mm
Special Use: Wear Resistant Steel, High-strength Steel Plate, Mould Steel, Hot Work Tool Steel DIN 1.2311, Alloy Steel
Shape: Plate, Sheet, Steel Plate/flat Bar/round Bar, Plate/sheet/ Flat Bar, Bar
Hardness: 32-38HRC
Name: 718H Plastic Mold Steel Plate Hardness 32-38HRC, With High Polising
Standard: AISI, DIN, ASTM, GB, JIS
Product Description

718H Plastic Mold Steel Plate Hardness 32-38HRC, With High Polising



718H Mould Steel Bar


718H is a vacuum-melting chromium-nickel-molybdenum alloy steel that has been hardened and tempered before it leaves the factory. It offers the following advantages: No risk of quench cracking and heat treatment; no need for heat treatment; shorten the cycle time; Cost (for example, without overseas Chinese is deformation); easy to amend the mold; nitriding and surface hardening can be applied to improve the mold surface hardness and wear resistance.
718H steel is pre-hard mirror anti-acid plastic mould steel. The steel pre-hardened, uniform material, high cleanliness, excellent polishing performance and lithography. Also has high hardenability, good electrical processing performance and striae processing performance. Pre-hardened steel without quenching can also be used for the mold bore, flange flame hardening can be implemented, the hardness can be increased to 52HRC.

China GB standard steel No. 3Cr2NiMo;
German DIN standard material steel No. 2738;
Sweden Assab ASSAB standard steel No. 718;
US AISI / SAE standard steel P20 optimization;
Japan JS standard steel SNCM optimization;
International Organization for Standardization ISO standard steel 35CrMo2.



718H plastic mould steels chemical composition (only for reference) (%) :

Element C Si Mn P S Cr Mo Ni
Min 0.35 0.2 1.3     1.8 0.15 0.9
Max 0.46 0.4 1.6 0.035 0.005 2.2 0.25 1.2



Hot Rolled 32-38HRC 718H Plate Plastic Mould Steel Material 0Hot Rolled 32-38HRC 718H Plate Plastic Mould Steel Material 1

Hot Rolled 32-38HRC 718H Plate Plastic Mould Steel Material 2Hot Rolled 32-38HRC 718H Plate Plastic Mould Steel Material 3Hot Rolled 32-38HRC 718H Plate Plastic Mould Steel Material 4Hot Rolled 32-38HRC 718H Plate Plastic Mould Steel Material 5
