Product Details:
|
| Product Name: | Hot Selling P20 Plastic Mold Steel Plate With Grinding Surface In Lowest Price | Technique: | Hot Rolled, Forged, EAF+LF+VD+Hot Rolled/Forged, Forged/Hot Rolled/Cold Drawn, Hot Rolled/forged/cold Draw |
|---|---|---|---|
| Surface Treatment: | Black Or Machined, Black Bright Mirror(mill Polishing HL Etc), Black Surface Or Mi | Standard: | AISI, DIN, ASTM, GB, JIS |
| Application: | Mould Base Of TV Front Shell, Telephone Set, Drinking Machine, Vacuum Cleaner | Shape: | Plate, Sheet, Steel Plate/flat Bar/round Bar, Plate/sheet/ Flat Bar, Ba |
| Delivery Condition: | Raw, According To The Demand Of The Customer Inquire, Standard Seaworthy Package | ||
| High Light: | P20 Plastic Mold Steel,Grinding Surface P20 Tool Steel,P20 Mold Tool Steel |
||

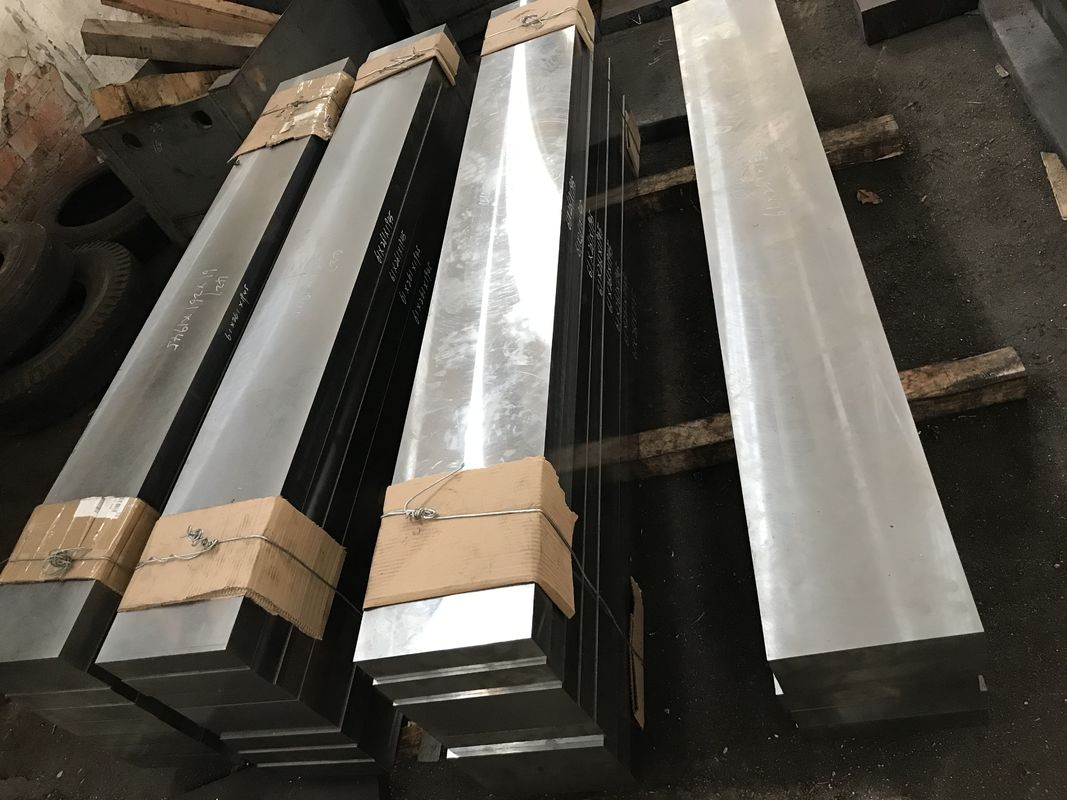

Hot Selling P20 Plastic Mold Steel Plate With Grinding Surface In Lowest Price
Description
Plastic mold includes thermoplastic mold and thermosetting plastic mold. The steel for plastic mould is required to have certain properties such as strength, hardness, wear resistance, thermal stability and corrosion resistance.
Application:
It is suitable for plastic mould and mould base of TV front shell, telephone set, drinking machine, vacuum cleaner, etc.
Thermoplastic injection mold, extrusion mold.
Thermoplastic blow molding mold.
Heavy duty mold main parts.
Cold structural parts.
Commonly used in the manufacture of television case, washing machine, refrigerator inner shell, bucket, etc
Specification
| Product Name |
alloy steel/carbon steel/steel round bar |
| Length | custom-made |
| Width | custom-made |
| Thickness | any size can custom-made |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
| Technique | Hot rolled/forged/cold draw |
| Surface Treatment | clean/black rough/milled/grinding painting etc. |
| Thickness tolerance | ±0.15mm |
| MOQ | 1 ton to 25 tons and accept sample order |
| Shipping time | 15-20 days after receiving deposit or L/C |
| Export packing | Standrad export seaworthy package/ wooden box package |
| Capacity | 12000 tons/year |
Material
3Cr2Mo/1.2311/1.2312/P20/1.2738/718H/P20+Ni/1.2316/1.2083/4Cr13
/sus420j2/420/S136/NAK80H13/1.2344/SKD61/5CrNiMo/SKT4/1.2714
Cr12/D3/1.2080/Cr12MoV/D2/1.2379/SKD11/9CrWMn/O1/1.2510/SKS3 /DC53
40Cr/5140/35CrMo/42CrMo/4140/1.7225
C45/C50/1045/1050/S50C/S45C/T10/T8
M2/1.338/SKH51
CUSTOM-MADE
Chemical composition
| Grade | C | Si | Mn | Cr | Mo | P | S | ||
| DIN | 1.2311 | 0.35~0.45 | 0.20~0.40 | 1.30~1.60 | 1.80~2.10 | 0.15~0.25 | ≤0.03 | ≤0.03 | |
| AISI | P20 | 0.28~0.4 | 0.2~0.8 | 0.6~1.0 | 1.4~2.0 | 0.3~0.55 | ≤0.03 | ≤0.03 | |
