Product Details:
|
| Technique: | Hot Rolled, Forged, EAF+LF+VD+Hot Rolled/Forged, Forged/Hot Rolled/Cold Drawn, Hot Rolled/forged/cold Draw | Surface Treatment: | Black Or Machined, Black Bright Mirror(mill Polishing HL Etc), Black Surface Or Mi |
|---|---|---|---|
| Length: | Customized, Customers' Requirement, 3000-118800mm, As Buyer Requirement | Application: | Mould Industry, Tool Steel |
| Name: | 1.2316 Plastic Mold Steel For PVC Mold Production High Surface Finish Applications | Shape: | Steel Plate |
| Special Use: | Plastic Mold, PVC Mold | Hardness: | Annealing Or 30-35HRC |
| Highlight: | 1.2316 Plastic Mold Steel,1.2316 PVC Mold Steel,35HRC Plastic Mold Steel |
||

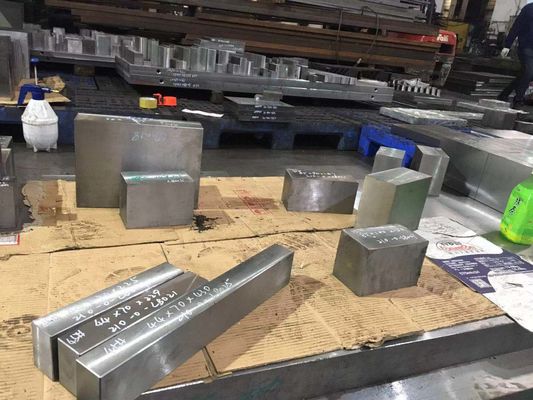

1.2316 Plastic Mold Steel For PVC Mold Production High Surface Finish Applications
1.2316 specification:
1.2316 die steel is used to produce chemical resistant plastic moulds.
A prehardened corrosion resistant mold steel for high surface finish applications
1.2316 is a 16%Cr 1% Mo with improved corrosion resistance properties, thanks to the addition of chromium and molybdenum.
The high cleanliness/homogeneity of the steel makes it specially adapted to fine polishing (mirror finish). This steel is commonly used for mold steel applications including cores, inserts and mold cavities working or stored in humid environments.
This grade is also used for the production of corrosive materials like PVC.
Application:
1. Pre hardening quenching and tempering plastic die steel; 2. Excellent corrosion resistance; 3. Excellent wear resistance and toughness; 4. Good thermal fatigue resistance; 5. Uniform hardness and excellent polishing performance; 6. High surface precision; 7. Low impurity content, stable production in the same period
Chemical compostion
| Grade | C | Si | Mn | Cr | Mo | Ni | P | S |
| DIN1.2316 | 0.33-0.43 | 0.6-01.00 | 0.6-1.0 | 15.00-17.00 | 1.0-1.30 | 0.70-1.0 | ≤0.030 | ≤0.030 |
| Product Name |
mould steel/plastic mould steel/ tool steel/alloy steel/carbon steel/steel round bar /steel plate/special steel/die steel/mould base/cold work tool steel/hot work tool steel/ |
||||||||||||||||||
| Length | any size can custom-made | ||||||||||||||||||
| Width | any size can custom-made | ||||||||||||||||||
| Thickness | any size can custom-made | ||||||||||||||||||
| Chemical composition |
|
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. | ||||||||||||||||||
| Technique | Hot rolled/forged/cold draw | ||||||||||||||||||
| Surface Treatment | clean/black rough/milled/grinding painting etc. | ||||||||||||||||||
| Thickness tolerance | ±0.15mm | ||||||||||||||||||
| Material |
3Cr2Mo/1.2311/1.2312/P20/1.2738/718H/P20+Ni/1.2316/1.2083/4Cr13 /sus420j2/420/S136/P80H13/1.2344/SKD61/5CrNiMo/SKT4/1.2714 Cr12/D3/1.2080/Cr12MoV/D2/1.2379/SKD11/9CrWMn/O1/1.2510/SKS3 /DC53 40Cr/5140/35CrMo/42CrMo/4140/1.7225 C45/C50/1045/1050/S50C/S45C/T10/T8 M2/1.338/SKH51 CUSTOM-MADE |
||||||||||||||||||
| MOQ | 1 ton to 25 tons and accept sample order | ||||||||||||||||||
| Shipping time | 15-20 days after receiving deposit or L/C | ||||||||||||||||||
| Export packing | Standrad export seaworthy package/ wooden box package |
