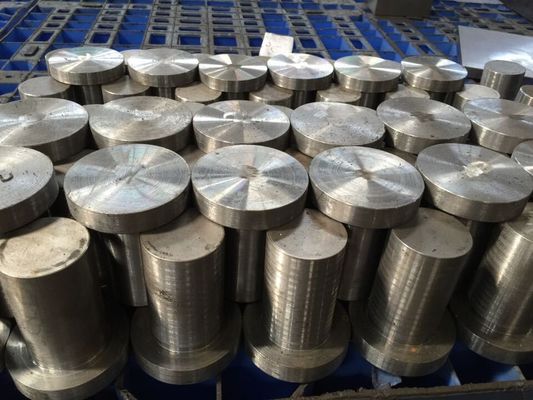

Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel

Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel
Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel

Large Image :  Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel

Product Details:
Place of Origin: CHINA
Brand Name: takford
Model Number: DC53
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: usd 3-5/kg
Packaging Details: SEA SAFETY PACKAGE
Delivery Time: 10-20 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 tons per month

Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel

Description
Steel Grade: Alloy Steel DC53 Cold Work Die Steel Technique: Hot Rolled, Forged, Cold Drawn, ESR, Hot Rolled / Cold Draw / Forged
Delivery Condition: Peeled, EAF+LF+VD, Finish Machining, Q+T, Annealed Or QT. Surface: Black, Mill Finish Or Peeled Finish, Machined, Peeled, Turned
Jis: DC53 Name: JIS DC53 Precision Punching Die Steel Round Bar Hot Rolled 30mm Diameter
High Light:

JIS 30mm Cold Work Tool Steel

,

DC53 30mm Cold Work Tool Steel

,

JIS 30mm Die Tool Steel

JIS DC53 precision punching die steel round bar hot rolled 30mm diameter





Description:



DC53 steel is a new cold die steel modified from SKD11/D2. Its technical specification is set out in The Japanese Industrial Standard (JIS) G4404.It overcomes the weakness of SKD11/D2 in high temperature tempering hardness and toughness, and will replace SKD11 completely in general and precision mold field.Its toughness is twice that of SKD11, and the toughness of DC53 is more prominent in cold mold steel. The tools made with DC53 seldom appear cracks and cracks, which greatly improves the service life.



Application:



Precision punching die: precision punching die for linear cutting and various purposes

Tools for plastic deformation of refractory materials

Die for cold forging, deep drawing and wire drawing

1. Punching mold, cold working molding mold, cold drawing mold

2. Forming roll and punch



Heat Treatment:



Forging temperature: 1100~900℃

Heat treatment temperature:

Annealing 830 ~ 880 ℃

Quenching of 1000 ~ 1040 ℃

Low tempering temperature 180~200℃

Annealing temperature is 520~530℃

Hardness:

Quenching tempering

HRC60~62

HRC62~63



Chemical composition:



Grade C Si Mn Ni Cr Mo W V
DC53 0.9-1.05 0.8-1.1 0.2-0.6   7.5-8.5 1.8-2.1   0.15-0.35



Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel 0Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel 1

Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel 2Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel 3Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel 4Hot Rolled 30mm JIS DC53 Die Cold Work Tool Steel 5
