Product Details:
|
| Product Name: | 1.2312 / P20+S | Technique: | Hot Rolled, Forged, EAF+LF+VD+Hot Rolled/Forged, Forged/Hot Rolled/Cold Drawn, Hot Rolled/forged/cold Draw |
|---|---|---|---|
| Surface Treatment: | Black Or Machined, Black Bright Mirror(mill Polishing HL Etc), Black Surface Or Mi | Standard: | AISI, DIN, ASTM, GB, JIS |
| Application: | Mould Base Of TV Front Shell, Telephone Set, Drinking Machine, Vacuum Cleaner | Shape: | Plate, Sheet, Steel Plate/flat Bar/round Bar, Plate/sheet/ Flat Bar, Ba |
| Delivery Condition: | Raw, According To The Demand Of The Customer Inquire, Standard Seaworthy Package | ||
| High Light: | Pre Harden Plastic Mold Steel,DIN 1.2312 Plastic Mold Steel,5800mm Plastic Mold Steel Plate |
||

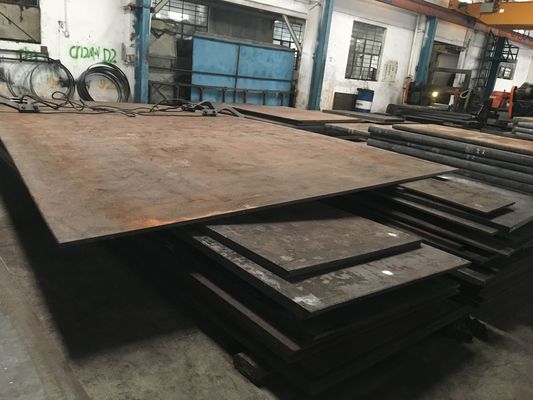

DIN 1.2312 Pre-Harden Hot Rolled Steel Plate Wide 2200mm Length 5800mm
1.2312 Plastic mold steel
Description:
DIN 1.2312 steel is a high quality plastic mold steel material. Steel 1.2312 is material produced by add about 0.08% sulphur on material 1.2311. The S element improves free cutting ability of 1.2311 steel . 2312 material is usually delivered in pre-hardness condition and hardness 28~34HRC.
ASTM P20+S steel is equivalent to DIN 1.2312 material. Generally, 40CrMnMoS8-6/1.2312 and P20+S mold steel will have the same properties for final application.
2. Relevant DIN 1.2312 Steel Specification and Equivalent Steel Grades
| Country | German | USA |
| Standard | DIN EN ISO 4957 | ASTM/AISI |
| Grades | 1.2312 | P20+S |
| DIN ISO 4957 | C | Mn | P | S | Si | Cr | Mo | |||||
| 1.2312 | 0.35 | 0.45 | 1.30 | 1.60 | 0.03 | 0.005-0.1 | 0.20 | 0.40 | 1.80 | 2.10 | 0.15 | 0.25 |
| ASTM A681 | C | Mn | P | S | Si | Cr | T | |||||
| P20+S | 0.28 | 0.40 | 0.60 | 1.00 | 0.03 | 0.03 | 0.20 | 0.80 | 1.40 | 2.00 | 0.30 | 0.55 |
Specification
| Product Name |
alloy steel/carbon steel/steel round bar |
| Length | custom-made |
| Width | custom-made |
| Thickness | any size can custom-made |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
| Technique | Hot rolled/forged/cold draw |
| Surface Treatment | clean/black rough/milled/grinding painting etc. |
| Thickness tolerance | ±0.15mm |
| MOQ | 1 ton to 25 tons and accept sample order |
| Shipping time | 15-20 days after receiving deposit or L/C |
| Export packing | Standrad export seaworthy package/ wooden box package |
| Capacity | 12000 tons/year |
