DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base

DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base
DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base

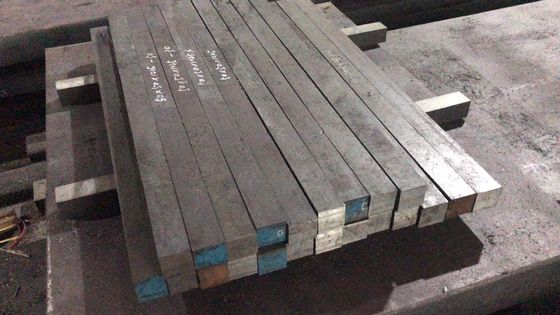

Large Image :  DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base

Product Details:
Place of Origin: CHINA
Brand Name: Misung
Model Number: P20/1.2311/3CR2MO
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: usd 0.8-1.5/kg
Packaging Details: According to The Demand of The Customer Inquire, Standard Seaworthy Package
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 tons per month

DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base

Description
Product Name: P20 Steel Plate 810mm Wide For Manufactory Mould Base Of Tv Front Shell Technique: Hot Rolled, Forged, EAF+LF+VD+Hot Rolled/Forged, Forged/Hot Rolled/Cold Drawn, Hot Rolled/forged/cold Draw
Surface Treatment: Black Or Machined, Black Bright Mirror(mill Polishing HL Etc), Black Surface Or Mi Standard: AISI, DIN, ASTM, GB, JIS
Application: Mould Base Of TV Front Shell, Telephone Set, Drinking Machine, Vacuum Cleaner Shape: Plate, Sheet, Steel Plate/flat Bar/round Bar, Plate/sheet/ Flat Bar, Ba
Delivery Condition: Raw, According To The Demand Of The Customer Inquire, Standard Seaworthy Package
High Light:

3CR2MO Plastic Mold Steel

,

DIN 1.2311 steel flat bar

,

3CR2MO steel flat bar

P20 / 1.2311/ 3CR2MO Plastic Mold Steel Flat Bar

Description

Plastic mold includes thermoplastic mold and thermosetting plastic mold. The steel for plastic mould is required to have certain properties such as strength, hardness, wear resistance, thermal stability and corrosion resistance.

Application:

It is suitable for plastic mould and mould base of TV front shell, telephone set, drinking machine, vacuum cleaner, etc.
Thermoplastic injection mold, extrusion mold.
Thermoplastic blow molding mold.
Heavy duty mold main parts.
Cold structural parts.
Commonly used in the manufacture of television case, washing machine, refrigerator inner shell, bucket, etc

Specification

Product Name

alloy steel/carbon steel/steel round bar

Length custom-made
Width custom-made
Thickness any size can custom-made
Standard AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
Technique Hot rolled/forged/cold draw
Surface Treatment clean/black rough/milled/grinding painting etc.
Thickness tolerance ±0.15mm
MOQ 1 ton to 25 tons and accept sample order
Shipping time 15-20 days after receiving deposit or L/C
Export packing Standrad export seaworthy package/ wooden box package
Capacity 12000 tons/year


Material


3Cr2Mo/1.2311/1.2312/P20/1.2738/718H/P20+Ni/1.2316/1.2083/4Cr13

/sus420j2/420/S136/NAK80H13/1.2344/SKD61/5CrNiMo/SKT4/1.2714

Cr12/D3/1.2080/Cr12MoV/D2/1.2379/SKD11/9CrWMn/O1/1.2510/SKS3 /DC53

40Cr/5140/35CrMo/42CrMo/4140/1.7225

C45/C50/1045/1050/S50C/S45C/T10/T8

M2/1.338/SKH51

CUSTOM-MADE


Chemical composition


  Grade C Si Mn Cr Mo P S
DIN 1.2311 0.35~0.45 0.20~0.40 1.30~1.60 1.80~2.10 0.15~0.25 ≤0.03 ≤0.03
AISI P20 0.28~0.4 0.2~0.8 0.6~1.0 1.4~2.0 0.3~0.55 ≤0.03 ≤0.03



DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base 0DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base 1
DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base 2DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base 3DIN 1.2311 / P20 / 3CR2MO Plastic Mold Steel Flat Bar injection mold base 4
