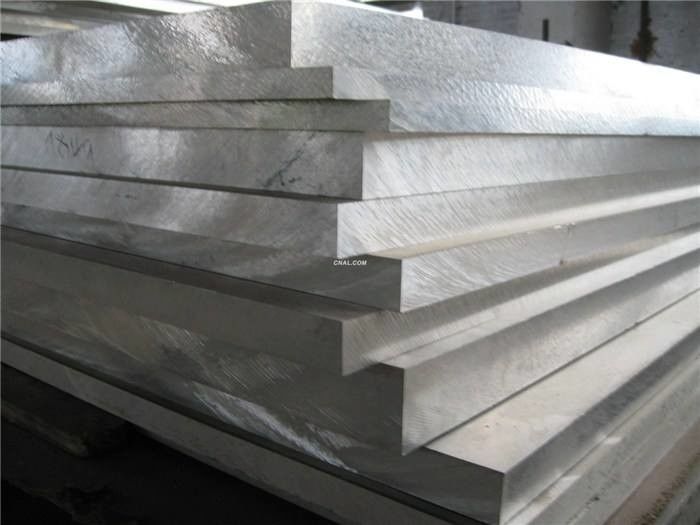

Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical

Certification
China DONGGUAN MISUNG MOULD STEEL CO.,LTD certification
Customer Reviews
We are almost finish with the assembly of the Tool, the dimensions and workmanship is very good, we are impressed by your standards. We have to do some testing of tool to give complete feedback but so far we happy with your quality, thank you and have a nice day.

—— Will Smith

I am very happy with your products, you are the best suppliers for us.

—— JAHANZAIB

We work with takford for more than 6 years, takford is the trusted suppliers.

—— Shahin shahi Pasand

I'm Online Chat Now

Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical

Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical
Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical

Large Image :  Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical

Product Details:
Place of Origin: CHINA
Brand Name: takford
Model Number: 7075 T651
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: usd 3.5-6/kg
Packaging Details: SEA SAFETY PACKAGE
Delivery Time: 10-20 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 tons per month

Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical

Description
Surface: Bright, Polished Technique: EXTRUDED
Hardness: ≥140HB Grade: 7000 Series
Shape: Round , Rod Package: Wrap Plastic Film+wooden Pallet If +wooden Case-- Need To Charge
Alloy Or Not: Alloy Aluminum Name: Over 150HB Harden 7075 T651 Aluminum Alloy Round Rod Good Mechanical Properties
High Light:

mechanical 7075 t6 aluminum plate

,

takford 7075 t6 aluminum plate

,

7075 aluminum alloy sheet

Over 150HB Harden 7075 T651 Aluminum Alloy round rod good mechanical properties



7075 aluminum alloy is a cold-treated forging alloy with high strength, far better than soft steel. 7075 is one of the most powerful alloys commercially available. The 7075 aluminum alloy has a compact structure and strong corrosion resistance, which is best for aviation and marine plates. Ordinary corrosion resistance, good mechanical properties and anode reaction. The finer grains make the deep drilling performance better and the tool wear resistance enhanced.







PURCHASE NOTES

  • Please make sure the size and quantity.

  • Calculate the weight=0.785*dia. *dia. * length(mm)*2.88/1000000*quantity.
    for example, one piece φ30mm*600mm, weight= 0.785*30*30*600*2.88/1000000*1=1.22(kg).

  • If the length is short,cutting losses should be added.
  • 1-3mm tolerance is reserved for the length and width of the cut.



TIPS: T6511-Based on t6,a certain amount of stretching in order to relieve internal stress, and then straightening.

Using T651 material, it is not easy to deformation and suitable for precision workpiece and parts.



Grade 7075
Temper T6 / T6511
Standard GB/T 3191-2010
Diameter/ length φ10-420mm / 2500mm,3000mm





Zinc as the main trace element of aluminum alloy.Aluminum alloy in the highest strength, super hard aviation aluminum, good mechanical and anodic reaction.Used for aircraft structural parts, molds, fixtures, mechanical equipment, precision workpiece, intelligent home, high supplies, etc.



  • Chemical composition ,Standard (max), W%

Al: balance
Si Fe Cu Mn Mg Zn Cr Zr+Ti
0.4 0.5 1.2-2.0 0.3 2.1-2.9 5.1-6.1 0.18-0.28 0.25



Application

Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical 0



Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical 1Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical 2Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical 3

Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical 4

Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical 5

Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical 6Polished 7075 T6 Aluminum Plate , Takford Aluminum Alloy Sheet Mechanical 7
