Product Details:
|
| Steel Grade: | Alloy Steel, 1.2080, D3 Cold Work Mould Steel | Shape: | Plate, Flat, Bar, Round, Round Bar / Plate / Flat / Sheet |
|---|---|---|---|
| Application: | Tool Steel Bar, Die Steel Bar, Structural Steel Bar, Industry, Cold Work Tool Steel | Standard: | DIN, ASTM, AISI, GB, JIS |
| Special Use: | Drill Sleeve, Gauge, Drawing Die, Embossing Die, Wire Drawing Board, Drawing Die And Thread Rolling Die | Delivery Condition: | Peeled, EAF+LF+VD, Finish Machining, Q+T, Annealed Or QT. |
| Dimensions: | 15-300MM, Dia 2mm~1500mm, Round50--1000mm, 20~600mm, Dia 8mm-430mm | Surface: | Black/polished/machined/peeled/grinded/turned, Machined, Peeled, Turned, Black Surface |
| Highlight: | 50mm Milled Steel Plate,1.2080 Milled Steel Plate,Milled Cold Work Tool Steel |
||

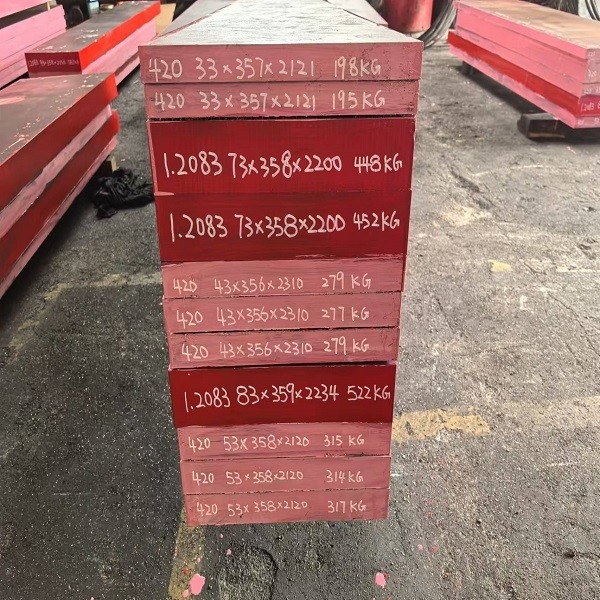

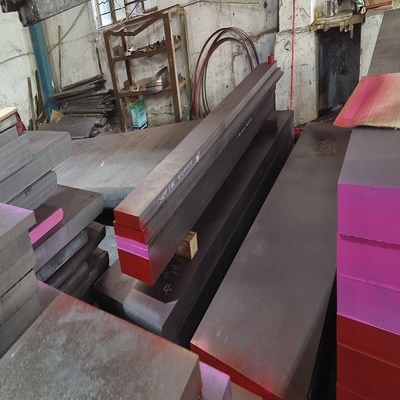

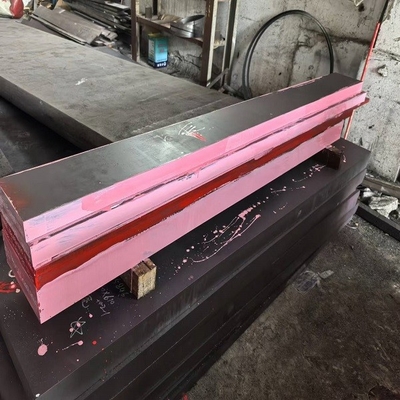

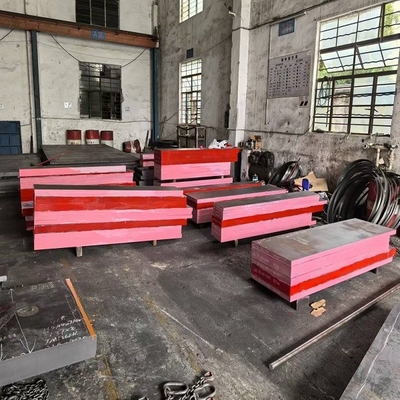

Milled D3 Cold Work Die Steel Plate 50mm With Good Hardenability Wear Resistance
D3 / Cr12 / 1.2080 steel is widely used cold working die steel, with high strength, good hardenability and good wear resistance, but the impact toughness is poor characteristics.
Applicaiton:
D3 / Cr12 / 1.2080 steel is widely used cold working die steel, with high strength, good hardenability and good wear resistance, but poor impact toughness.It is mainly used for cold punching die and punch, cold cutting scissors, drill sleeve, gauge, drawing die, embossing die, wire drawing board, drawing die and thread rolling die with low impact load and high wear resistance.
Cold working is defined as the plastic deformation of a metal below its recrystallization temperature. In the precision machining industry, cold working processes include thread rolling, thread forming, swaging, crimping, riveting, smoothing and metal spinning. The steel bars we process are usually cold drawn (cold worked).
Suppliers use cold working when cold drawing bar from hot rolls to make it easier to process. There is no heat during cold working and no chips are removed during metal forming.
Similar Standards
| Chinese | American | German | Japanese |
| GB | AISI | DIN | JIS |
| Cr12 | D3 | 1.2080 | SKD1 |
Chemical Composition
| Grades | C | Si | Mn | P | S | Cr | Mo | V |
| 1.208 | 1.9-2.2 | 0.1-0.4 | 0.15-0.45 | ≤0.03 | ≤0.03 | 11.5-12.0 | / | / |
| D3 | 2.00-2.35 | 0.25-0.45 | 0.24-0.45 | ≤0.03 | ≤0.03 | 11.5-13.0 | 0.8 | 0.8 |
| Cr12 | 2.0-2.3 | ≤0.4 | ≤0.4 | ≤0.03 | ≤0.03 | 11.5-13.0 | / | / |
| SKD1 | 1.9-2.2 | 0.1-0.6 | 0.2-0.6 | ≤0.03 | ≤0.03 | 11.0-13.0 | / | ≤0.03 |
Heat Treatment
| Heat Treatment | |||||
| Quenching | Tempering | ||||
| Heating Temperature/℃ | Cooling | Hardness/HRC | Heating Temperature/℃ | Cooling | Hardness/HRC |
| 950-980 | Oil | ≥60 | 180-220 | Air | 60 |
| 400 | 54-58 |
||||
