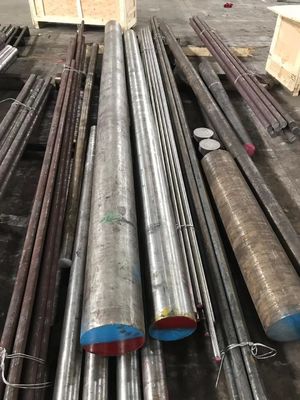

Aluminium Extrusion Mould Forged 1.2714 Tool Steel Block

Aluminium Extrusion Mould Forged 1.2714 Tool Steel Block
Aluminium Extrusion Mould Forged 1.2714 Tool Steel Block Aluminium Extrusion Mould Forged 1.2714 Tool Steel Block Aluminium Extrusion Mould Forged 1.2714 Tool Steel Block

Large Image :  Aluminium Extrusion Mould Forged 1.2714 Tool Steel Block

Product Details:
Place of Origin: CHINA
Brand Name: takford
Model Number: 1.2714/5crnimo/SKT4
Payment & Shipping Terms:
Minimum Order Quantity: 20 TONS
Price: USD 1.5-3/KG
Packaging Details: SEA SAFETY PACKAGE
Delivery Time: 20-50 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 SET [ER MONTH

Aluminium Extrusion Mould Forged 1.2714 Tool Steel Block

Description
Technique: Forged, EAF+LF+VD+Hot Rolled/Forged, Forged/Hot Rolled/Cold Drawn, Hot Rolled/forged/cold Draw Application: Aluminium Extrusion Mold
Standard: AISI, DIN, ASTM, GB, JIS Type: Alloy Steel Bar, Carbon Steel Bar, Mold Steel, Tool Steel
Ut Test Standard: SEP1921-84 Class3 C/c To D/d Surface Treatment: Black Or Machined, Black Bright Mirror(mill Polishing HL Etc), Black Surface Or Mi
High Light:

1.2714 Forged Steel block

,

1.2714 Tool Steel block

,

Forged Tool Steel block

Forged Production 1.2714 Tool Steel Block For Aluminium Extrusion Mould

  1. Steel Grade: Hot Work Tool Steel
  2. Standard: AISI, ASTM, BS, DIN, GB, JIS
  3. Dimensions: 20~800MM
  4. Place of Origin: China (Mainland)
  5. Brand Name: songshun
  6. Model Number: DIN 1.2714
  7. Technique: Forged
  8. Application: Tool Steel Bar
  9. Alloy Or Not: Is Alloy
  10. Special Use: Mold Steel
  11. Type: Alloy Steel Bar
  12. Mould name: Songshun din 1.2714 steel of good price 1.2714
  13. Shape: Round bars/Flat bar/Plate
  14. Technology: Hot Rolled/Forged/Clod Drawn
  15. Heat treatment: Annealing/Q+T
  16. Surface treatment:Black/Peeling/Polishing/Machined
  17. Delivery condition: Hot rolled or forged/ Peeled or black surface/annealed or QT
  18. Test: SGS/UT100%/Elements testing
  19. Certificate: ISO/Mill certificate
  20. Service: Sample free and 24 hours online
  21. Experience: Ten years manufacturer experience

1.2714 steel Packaging & Delivery

Packaging Details: seaworthy packing; 20ft: GW:17.5T; (5.80mX2.13mX2.18m,) 40ft: GW:22T; (11.8mX2.13mX2.18m,)
Delivery Detail: 4~7 days after the order is confirmed

Hot work steel 1.2714 Specifications

Songshun din 1.2714 steel of good price 1.2714
1.A/N/Q+T provide
2.Sample free
3.Black or Bright
4.D: Max:800mm



1.2714 steel Product Description

Songshun din 1.2714 steel of good price 1.2714
1.Specifications of din 1.2714 steel of good price 1.2714
Round bar Diameter(mm) Length (mm)
20~800 3000~5800



Plate

Thickness(mm) Width (mm) Length (mm)
Max:800 205~810 2000~4000
The size can be customed
2.Chemical composition(%) of din 1.2714 steel of good price 1.2714
C Si Mn Cr Mo V Ni P S
0.50- 0.60 0.10- 0.40 0.65- 0.95 1.00- 1.20 0.45-0.55 0.07-0.12 1.50-1.80 0.03max 0.03max
Similar standards
AISI/SAE DIN W.Nr. JIS GB,YB
6F2 56NiCrMoV7

1.2713

1.2714

SKD4 SCrNiMo
3.Heat treatment of din 1.2714 steel of good price 1.2714

Isothermal annealing:

-Heat to 800°Cand hold at temperature for 1/2 h to 1 h;

-Furnace cooling to 670°Cand hold at temperature for at least 10 hours;

-Cool by 10°C/h to 630°C;

-Cooling in air.

Maximum hardness:≤240 HB

Stress relieving:

To be carried out after maching before the final heat treatment.

-Heat to 600-650°C, hold for 4-6 hours;

-Cooling in furnace to 300-350°C;

-Cooling in air

Hardening:

-Initial preheating to 350-450°C;

-Second preheating to 650-750°C;

-Heat to hardening temperature 860-890°Cand hold at temperature;

-Cooling in hot oil (40-60°C); Tempering hardness: 45~45HRC

Tempering:

Tempering must be carried out within one hour from hardening(warm part)

in the range 550-630°Cfor 4-6 hours according to hardness required, the

dimensions of the parts and operating conditions.



Aluminium Extrusion Mould Forged 1.2714 Tool Steel Block 0Aluminium Extrusion Mould Forged 1.2714 Tool Steel Block 1

Aluminium Extrusion Mould Forged 1.2714 Tool Steel Block 2Aluminium Extrusion Mould Forged 1.2714 Tool Steel Block 3Aluminium Extrusion Mould Forged 1.2714 Tool Steel Block 4
