Product Details:
|
| Products Name: | 4140 Alloy Structure Steel Round Bar For Machine Shafts | Technology: | Hot Rolled |
|---|---|---|---|
| Steel Grade: | 4140/42crmo/scm440/1.7225 | Shape: | Steel Round Bar |
| Surface: | Bright | Application: | Machine, Industry |
| High Light: | 4140 Alloy Tool Steel,Bright Surface Alloy Tool Steel,4140 Bright Surface Tool Steel |
||

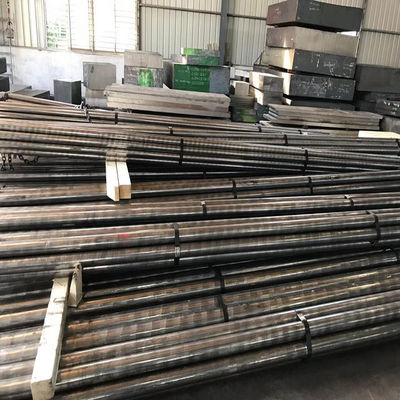

Bright Surface 4140 Alloy Structure Steel Round Bar For Machine Shafts
SAE 4140 Steel round bar
1. 4140 alloy steel is a 1% chromium - molybdenum medium hardenability general purpose high tensile steel - generally supplied hardened and tempered in the tensile range of 850 - 1000 Mpa (condition T).4140 is now available with improved machinability, which greatly increases feeds and/or speeds, while also extending tool life without adversley affecting mechanical properties.
Pre hardened and tempered 4140 can be further surface hardened by flame or induction hardening and by nitriding.
4140 is used extensively in most industry sectors for a wide range of applications such as:
Adapters, Arbors, Axle Shafts, Bolts, Crankshafts, Connection Rods, Chuck Bodies, Collets, Conveyor Pins & Rolls, Ejector Pins, Forks, Gears, Guide Rods, Hydraulic Shafts & Parts,Lathe Spindles, Logging Parts, Milling Spindles, Motor Shafts, Nuts, Pinch Bars, Pins Various, Pinions, Pump Shafts, Rams, Sockets, Spindles, Sprockets, Studs, Tool Holders, Torsion Bars, Worms etc..
2. Common 4140 Steel Specifications
| Country | USA | German | British | Japan | China | Australia |
| Standard | ASTM A29 | DIN 17200 | BS 970 | JIS G4105 | GB/T 3077 | AS 1444 |
| Grades | 4140 | 1.7225/ 42crmo4 |
42CrMo4 | SCM440 | 42CrMo | 4140 |
3. 4140 Steel Bar Chemical Composition
| Standard | Grade | C | Mn | P | S | Si | Ni | Cr | Mo |
| ASTM A29 | 4140 | 0.38-0.43 | 0.75-1.00 | 0.035 | 0.040 | 0.15-0.35 | – | 0.8-1.10 | 0.15-0.25 |
| EN 10250 | 42CrMo4/ 1.7225 |
0.38-0.45 | 0.6-0.9 | 0.035 | 0.035 | 0.4 | – | 0.9-1.2 | 0.15-0.30 |
| JIS G4105 | SCM440 | 0.38-0.43 | 0.60-0.85 | 0.03 | 0.03 | 0.15-0.35 | – | 0.9-1.2 | 0.15-0.30 |
4. Mechanical Properties of AISI Alloy 4140 Steel Bar, Plates, Square
| Properties | Metric | Imperial |
| Tensile strength | 655 MPa | 95000 psi |
| Yield strength | 415 MPa | 60200 psi |
| Bulk modulus (typical for steel) | 140 GPa | 20300 ksi |
| Shear modulus (typical for steel) | 80 GPa | 11600 ksi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 25.70% | 25.70% |
| Hardness, Brinell | 197 | 197 |
| Hardness, Knoop (converted from Brinell hardness) | 219 | 219 |
| Hardness, Rockwell B (converted from Brinell hardness) | 92 | 92 |
| Hardness, Rockwell C (converted from Brinell hardness. Value below normal HRC range, for comparison purposes only) | 13 | 13 |
| Hardness, Vickers (converted from Brinell hardness) | 207 | 207 |
| Machinability (based on AISI 1212 as 100 machinability) | 65 | 65 |
5. Forging
Preheat the steel carefully, heat to 1150 oC – 1200 oC maximum, hold until temperature is uniform throughout the section.
Do not forge below 850 oC.Following forging operation the work piece should be cooled as slowly as possible.
