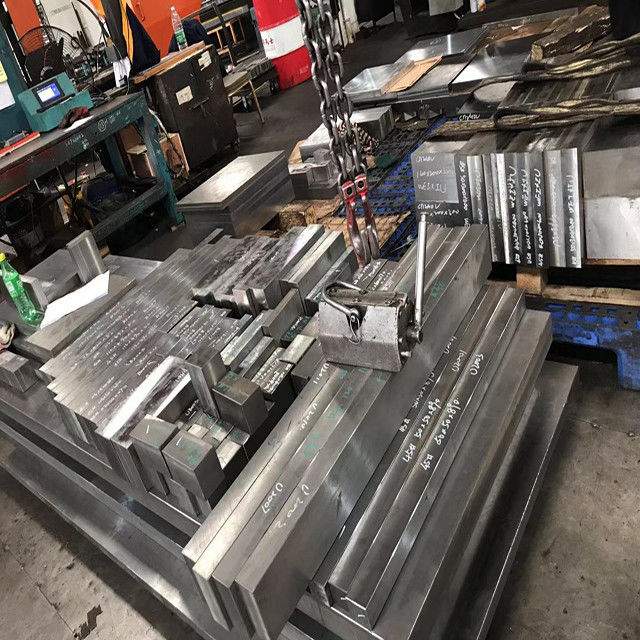

52-56 HRC Din 1.2344 High Hardness Mold Steel Plate

52-56 HRC Din 1.2344 High Hardness Mold Steel Plate
52-56 HRC Din 1.2344 High Hardness Mold Steel Plate 52-56 HRC Din 1.2344 High Hardness Mold Steel Plate 52-56 HRC Din 1.2344 High Hardness Mold Steel Plate 52-56 HRC Din 1.2344 High Hardness Mold Steel Plate

Large Image :  52-56 HRC Din 1.2344 High Hardness Mold Steel Plate

Product Details:
Place of Origin: CHINA
Brand Name: takford
Model Number: H13/skd61/1.2344
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: usd 2-4/kg
Packaging Details: Standrad export seaworthy package/ wooden box package
Delivery Time: 3-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 tons per month

52-56 HRC Din 1.2344 High Hardness Mold Steel Plate

Description
Technique: Hot Rolled, Forged, EAF+LF+VD+Hot Rolled/Forged, Forged/Hot Rolled/Cold Drawn, Hot Rolled/forged/cold Draw Application: Tool Steel Bar, Die Steel Bar, Structural Steel Bar, Industry, H13 Hot Work Tool Steel
Steel Grade: Alloy Steel, Carbon Steel, 1.2344 Surface Treatment: Black/Grinded/Machined/Turned, Plating, Polished, Painting, Polishing
Ut Test Standard: SEP1921-84 Class3 C/c To D/d Special Use: Aluminium Mold Production
Name: Din 1.2344 High Hardness Steel Plate 52-56 HRC For Manufacturing Brush Machine Spare Parts Type: ESR OR EAF
Standard: AISI, DIN, ASTM, GB, JIS Dimensions: 10-900MM, 40-400, Dia 8-420mm, Flat Bar Hot Work Steel H13 Tool Steel 1.2344, 8-3000MM
High Light:

1.2344 56 HRC Mold Steel Plate

,

56HRC Din 1.2344 Mold Steel Plate

,

56HRC Din 1.2344 High Hardness Steel Plate

din 1.2344 High hardness steel plate 52-56 HRC for manufacturing brush machine spare parts



H13 die steel is used to manufacture forging dies, hot extrusion dies, precision forging dies with large impact loads, and die casting dies for aluminum, copper and their alloys. H13 Tool Steel is a versatile chromium-molybdenum hot work steel that is widely used in hot work and cold work tooling applications. The hot hardness (hot strength) of H13 resists thermal fatigue cracking which occurs as a result of cyclic heating and cooling cycles in hot work tooling applications. Because of its excellent combination of high toughness and resistance to thermal fatigue cracking (also known as heat checking) H13 is used for more hot work tooling applications than any other tool steel.

Because of its high toughness and very good stability in heat treatment, H13 is also used in a variety of cold work tooling applications. In these applications, H13 provides better hardenability (through hardening in large section thicknesses) and better wear resistance than common alloy steels such as 4140.

Also available as Electro-Slag-Remelted (ESR) and Vacuum-Arc-Remelted (VAR) products as well. The remelting processes provide improved chemical homogeneity, refinement of carbide size, and the associated improvements in mechanical properties and fatigue properties.

APPLICATIONS: Inserts, cores, and cavities for die casting dies, die casting shot sleeves, hot forging dies, extrusion dies, and plastic mold cavities and components that require high toughness and excellent polishability.



2. Common H13/1.2344/SKD61 Tool Steel Related Specifications

Country USA German Japan
Standard ASTM A681 DIN EN ISO 4957 JIS G4404
Grades H13 1.2344/X40CrMoV5-1 SKD61

3. H13/1.2344/SKD61Tool Steel Chemical Composition

ASTM A681 C Mn P S Si Cr V Mo
H13 0.32 0.45 0.2 0.6 0.03 0.03 0.8 1.25 4.75 5.5 0.8 1.2 1.1 1.75
DIN ISO 4957 C Mn P S Si Cr V Mo
1.2344 /X40CrMoV5-1 0.35 0.42 0.25 0.5 0.03 0.02 0.8 1.2 4.8 5.5 0.85 1.15 1.1 1.5
JIS G4404 C Mn P S Si Cr V Mo
SKD61 0.35 0.42 0.25 0.5 0.03 0.02 0.8 1.2 4.8 5.5 0.8 1.15 1.0 1.5

52-56 HRC Din 1.2344 High Hardness Mold Steel Plate 052-56 HRC Din 1.2344 High Hardness Mold Steel Plate 1




52-56 HRC Din 1.2344 High Hardness Mold Steel Plate 2



52-56 HRC Din 1.2344 High Hardness Mold Steel Plate 3



52-56 HRC Din 1.2344 High Hardness Mold Steel Plate 4

52-56 HRC Din 1.2344 High Hardness Mold Steel Plate 5
